Grafana ​

Introduction ​

Grafana Open Source Software (OSS) enables you to query, visualize, alert on, and explore your metrics, logs, and traces wherever they’re stored. Grafana data source plugins enable you to query data sources including time series databases like Prometheus and CloudWatch, logging tools like Loki and Elasticsearch, NoSQL/SQL databases like Postgres, CI/CD tooling like GitHub, and many more. Grafana OSS provides you with tools to display that data on live dashboards with insightful graphs and visualizations.

Grafana Enterprise is a commercial edition of Grafana that includes exclusive data source plugins and additional features not found in the open source version. You also get 24x7x365 support and training from the core Grafana team. To learn more about these features, refer to Enterprise features.

Deploy By Binary ​

Quick Start ​

bash
# option.1: Debian / Ubuntu repo
apt install -y apt-transport-https software-properties-common wget
wget -q -O /usr/share/keyrings/grafana.key https://apt.grafana.com/gpg.key
echo "deb [signed-by=/usr/share/keyrings/grafana.key] https://apt.grafana.com stable main" | tee -a /etc/apt/sources.list.d/grafana.list
apt update
apt install grafana

# option.2: resource
wget https://dl.grafana.com/oss/release/grafana-10.0.3.linux-amd64.tar.gz
tar -zxvf grafana-10.0.3.linux-amd64.tar.gz && rm -f grafana-10.0.3.linux-amd64.tar.gz
cd grafana-10.0.3
./bin/grafana server --config ./conf/defaults.ini

Config and Boot ​

Config ​

Main configuration file: /etc/grafana/grafana.ini

Server

ini
[server]
protocol = http
http_addr = 0.0.0.0
http_port = 3000
domain = grafana.example.com
root_url = %(protocol)s://%(domain)s/

Database

ini
# Default is SQLite3. For production, use MySQL or PostgreSQL.
[database]
type = postgres
host = 127.0.0.1:5432
name = grafana
user = grafana
password = grafana
ssl_mode = disable

SMTP & Alerting

ini
[smtp]
enabled = true
host = smtp.example.com:587
user = grafana@example.com
password = secret
skip_verify = false
from_address = grafana@example.com
from_name = Grafana

[alerting]
enabled = true
execute_alerts = true

Image Rendering

ini
[rendering]
server_url = http://grafana-image-renderer:8081/render
callback_url = http://grafana/
concurrent_render_request_limit = 10

Authentication

ini
# OAuth2 with Keycloak / Generic OAuth
[auth.generic_oauth]
enabled = true
name = SSO
client_id = grafana
client_secret = secret
scopes = openid profile email
auth_url = https://auth.example.com/realms/main/protocol/openid-connect/auth
token_url = https://auth.example.com/realms/main/protocol/openid-connect/token
api_url = https://auth.example.com/realms/main/protocol/openid-connect/userinfo
role_attribute_path = contains(groups[*], 'admin') && 'Admin' || 'Viewer'

Provisioning

Grafana supports provisioning data sources and dashboards via YAML files placed in /etc/grafana/provisioning/.

yaml
# /etc/grafana/provisioning/datasources/prometheus.yaml
apiVersion: 1
datasources:
  - name: Prometheus
    type: prometheus
    access: proxy
    url: http://prometheus:9090
    isDefault: true
  - name: Loki
    type: loki
    access: proxy
    url: http://loki:3100
yaml
# /etc/grafana/provisioning/dashboards/default.yaml
apiVersion: 1
providers:
  - name: default
    orgId: 1
    folder: ''
    type: file
    options:
      path: /var/lib/grafana/dashboards
      foldersFromFilesStructure: true

Boot(systemd) ​

bash
# boot
systemctl daemon-reload
systemctl start grafana-server.service
systemctl enable grafana-server.service

Deploy By Container ​

Run On Docker ​

pull images

bash
# default based images: Alpine
# oss version(open source, default)
docker pull grafana/grafana
docker pull grafana/grafana-oss
# enterprise version
docker pull grafana/grafana-enterprise


# other based images: Ubuntu
# oss version(open source, default)
docker pull grafana/grafana:latest-ubuntu
docker pull grafana/grafana-oss:latest-ubuntu
# enterprise version
docker pull grafana/grafana-enterprise:latest-ubuntu

start container

bash
# run
docker run -d -p 3000:3000 grafana/grafana-enterprise

# run with plugins
docker run -d -p 3000:3000 --name=grafana \
  -e "GF_INSTALL_PLUGINS=grafana-clock-panel 1.0.1" \
  grafana/grafana-oss:latest-ubuntu
docker run -d -p 3000:3000 --name=grafana --rm \
  -e "GF_INSTALL_PLUGINS=grafana-image-renderer" \
  grafana/grafana-enterprise:latest-ubuntu

# run with plugins by source
git clone https://github.com/grafana/grafana.git
cd grafana/packaging/docker/custom
docker build \
  --build-arg "GRAFANA_VERSION=latest" \
  --build-arg "GF_INSTALL_PLUGINS=grafana-clock-panel,grafana-simple-json-datasource" \
  -t grafana-custom .
docker run -d -p 3000:3000 --name=grafana grafana-custom

docker-compose = https://grafana.com/docs/grafana/latest/setup-grafana/start-restart-grafana/#docker-compose-example

Run On Kubernetes ​

deploy on resource manifest

bash
cat > grafana.yaml << "EOF"
kind: PersistentVolumeClaim
...
kind: Deployment
...
kind: Service
...
EOF
# https://grafana.com/docs/grafana/latest/setup-grafana/installation/kubernetes/

# send the manifest to API Server
kubectl -n monitoring apply -f grafana.yaml

# forward port on host
kubectl -n monitoring port-forward service/grafana 3000:3000

deploy on helm

bash
# add and update repo
helm repo add grafana https://grafana.github.io/helm-charts
helm update

# get charts package
helm pull grafana/grafana --untar
cd grafana

# configure and run
vim values.yaml
persistence:
  enabled: true
  storageClassName: "xxx-nfs"
imageRenderer:
  enabled: true
...
helm -n monitoring install grafana .

Grafana Labs dashboards ​

Basic ​

bash
# Node Exporter Full
1860

Kubernetes ​

bash
# Kubernetes Dashboard
18283

# Kubernetes Cluster (Prometheus)
6417

# K8S Dashboard EN 20250125
15661
#

Database & Middleware ​

bash
# Mysql
7362
# IOPS metrics
sum(irate(mysql_global_status_innodb_data_reads[5m])) by instance + sum(irate(mysql_global_status_innodb_data_writes[5m])) by instance

# Kafka
7589

# Redis
# single
11835
# cluster
763

# RocketMQ
10477

ObservabilityAnalysis ​

bash
# loki logs
13186

# loki metrics
17781

Alert ​

telegram_bot ​

bash
# 1.get bot and token
https://core.telegram.org/bots#how-do-i-create-a-bot
https://core.telegram.org/bots/features#botfather

# 2.create telegram alert group and invited bot into group

# 3.get bot or chat_id info
curl https://api.telegram.org/bot<token>/getMe
curl https://api.telegram.org/bot<token>/getUpdates

# 4.send test message
curl "https://api.telegram.org/bot<token>/sendMessage?chat_id=<chat_id>&text=<msg>"

# 5.add bot to grafana

alerting config ​

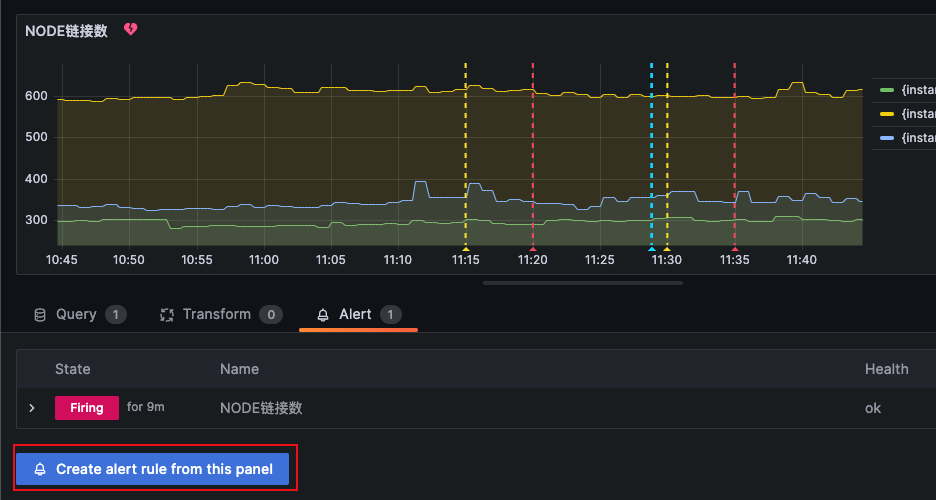

  1. Dashboard --> edit panel --> create alert rule from this panel Pasted image 20230821114504

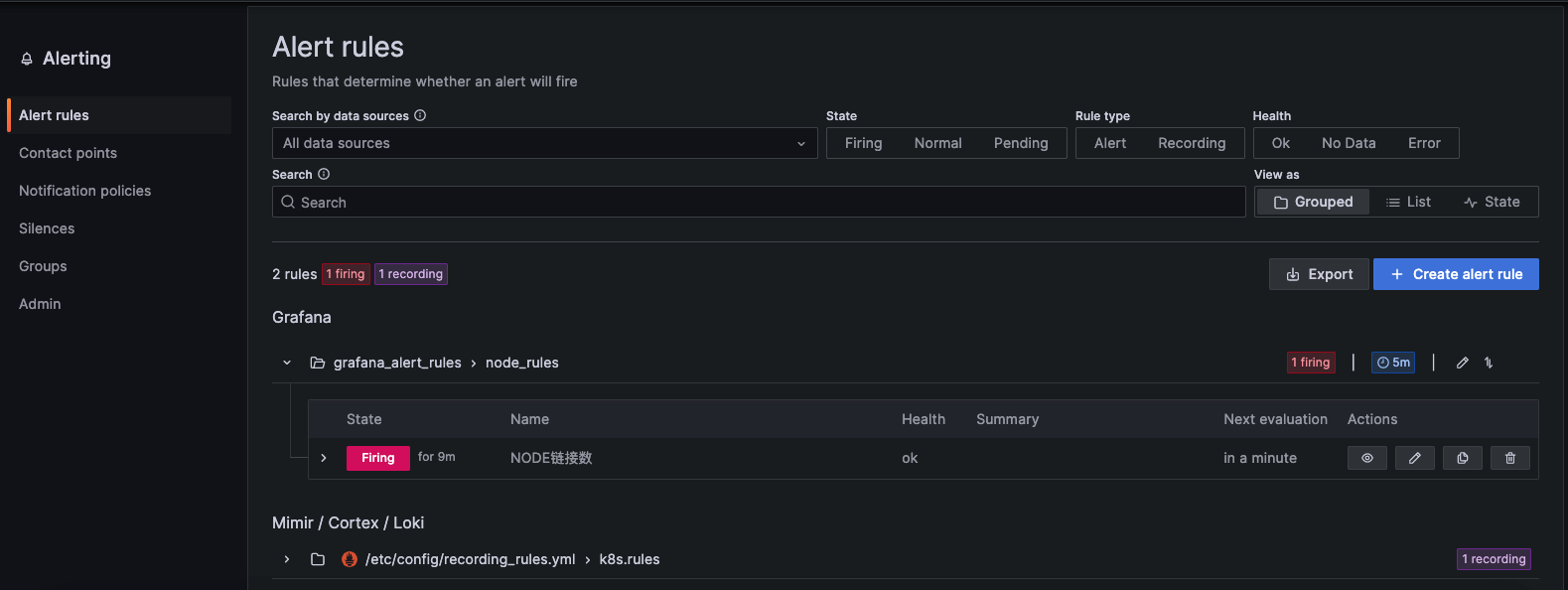

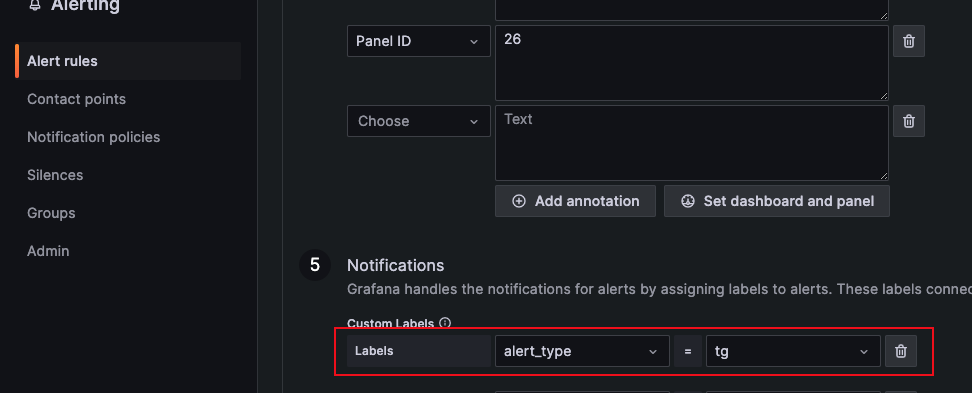

  2. Notifications --> add Labels(related Contact points) Pasted image 20230821114732Pasted image 20230821114429

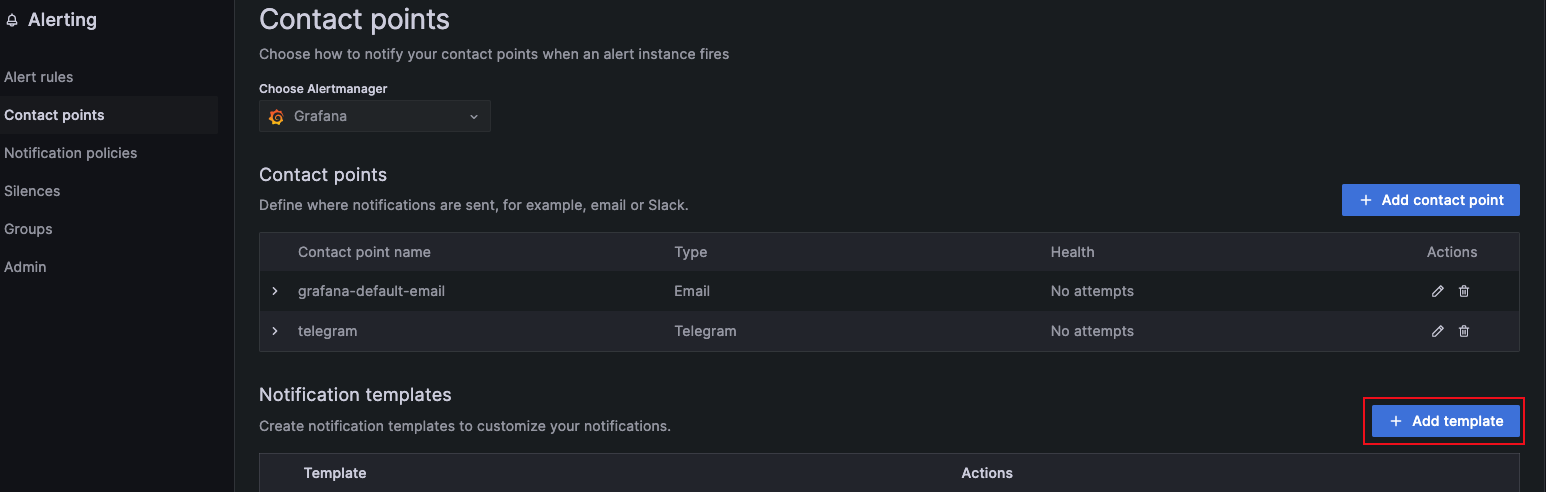

  3. Contact points --> Add template --> create notification template Pasted image 20230821143025

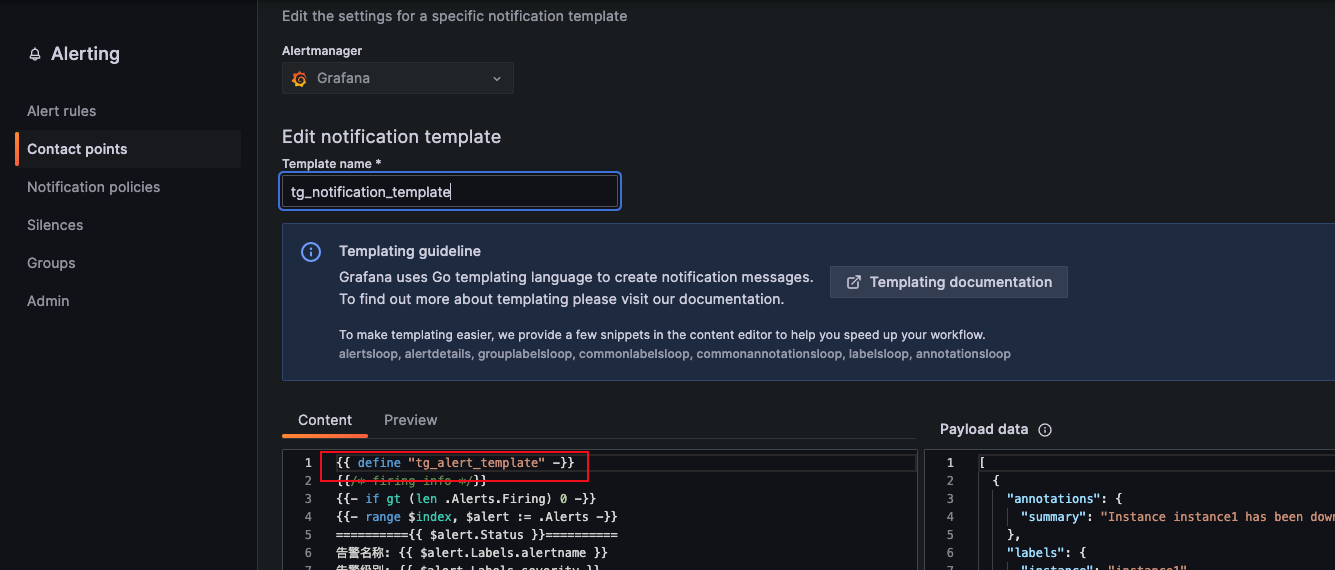

Pasted image 20230822100216

html
{{ define "tg_alert_template" -}} {{/* firing info */}} {{- if gt (len
.Alerts.Firing) 0 -}} {{ range $index, $alert := .Alerts }} =========={{
$alert.Status }}========== Alert Name: {{ $alert.Labels.alertname }} Severity: {{
$alert.Labels.severity }} Details: {{ $alert.Annotations.summary }};{{
$alert.Annotations.description }} Fired At: {{ ($alert.StartsAt.Add
28800e9).Format "2006-01-02 15:04:05" }} Instance: {{ $alert.Labels.instance }}
Current Value: {{ $alert.Values.B }} Silence Alert: {{ .SilenceURL }} Dashboard: {{
.DashboardURL }} ============END============ {{- end -}} {{- end }} {{/*
resolved info */}} {{- if gt (len .Alerts.Resolved) 0 -}} {{ range $index,
$alert := .Alerts }} =========={{ $alert.Status }}========== Alert Name: {{
$alert.Labels.alertname }} Severity: {{ $alert.Labels.severity }} Details: {{
$alert.Annotations.summary }};{{ $alert.Annotations.description }} Fired At: {{
($alert.StartsAt.Add 28800e9).Format "2006-01-02 15:04:05" }} Resolved At: {{
($alert.EndsAt.Add 28800e9).Format "2006-01-02 15:04:05" }} Instance: {{
$alert.Labels.instance }} Current Value: {{ $alert.Values.B }} Silence Alert: {{
.SilenceURL }} Dashboard: {{ .DashboardURL }} ============END============ {{- end
-}} {{- end }} {{- end -}}

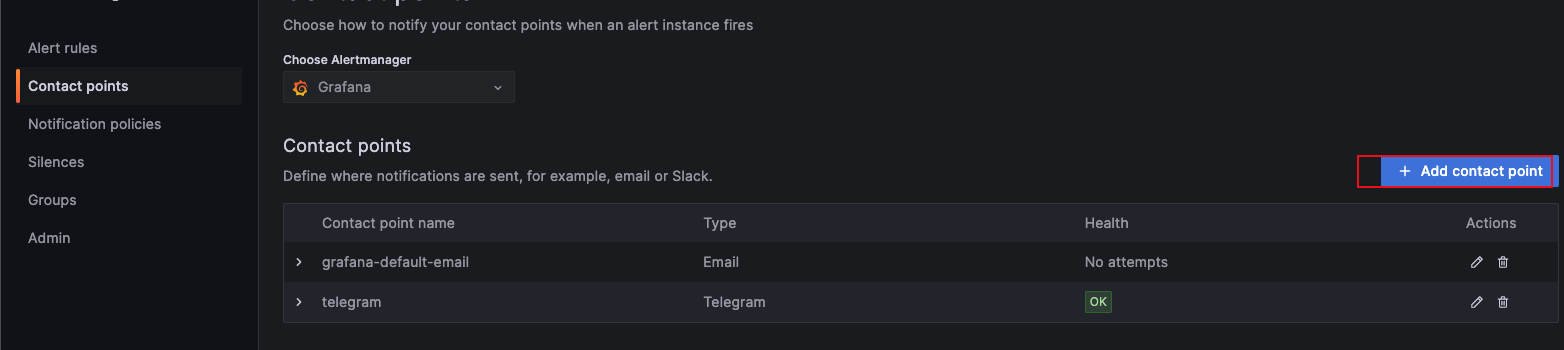

  1. Contact points --> Add contact point --> create telegram contact point Pasted image 20230821115559
html
# Message {{ template "tg_alert_template" . }}

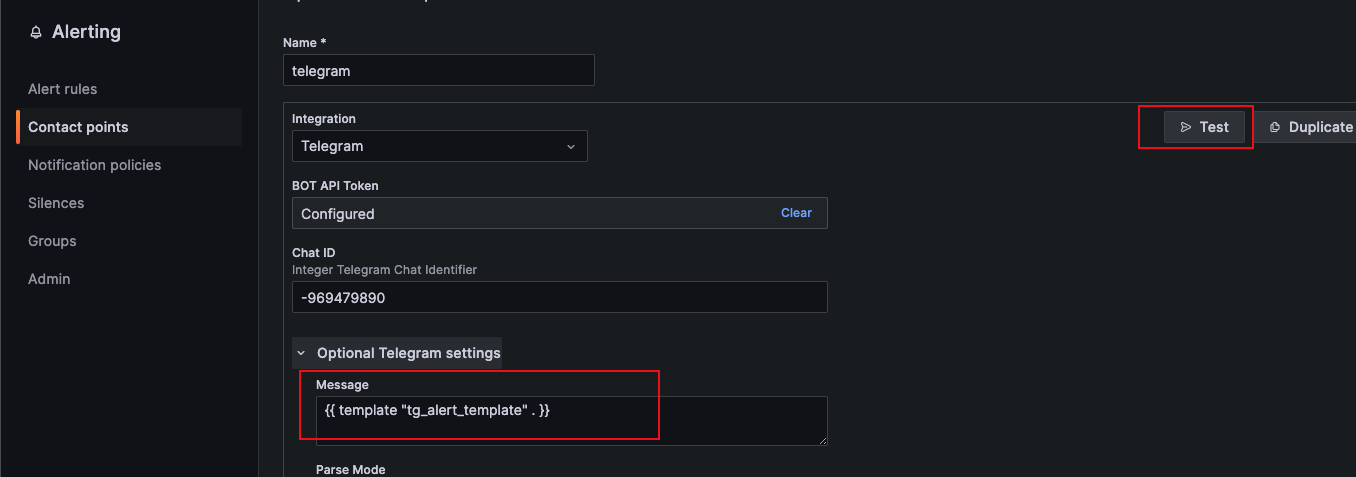

Pasted image 20230822100054

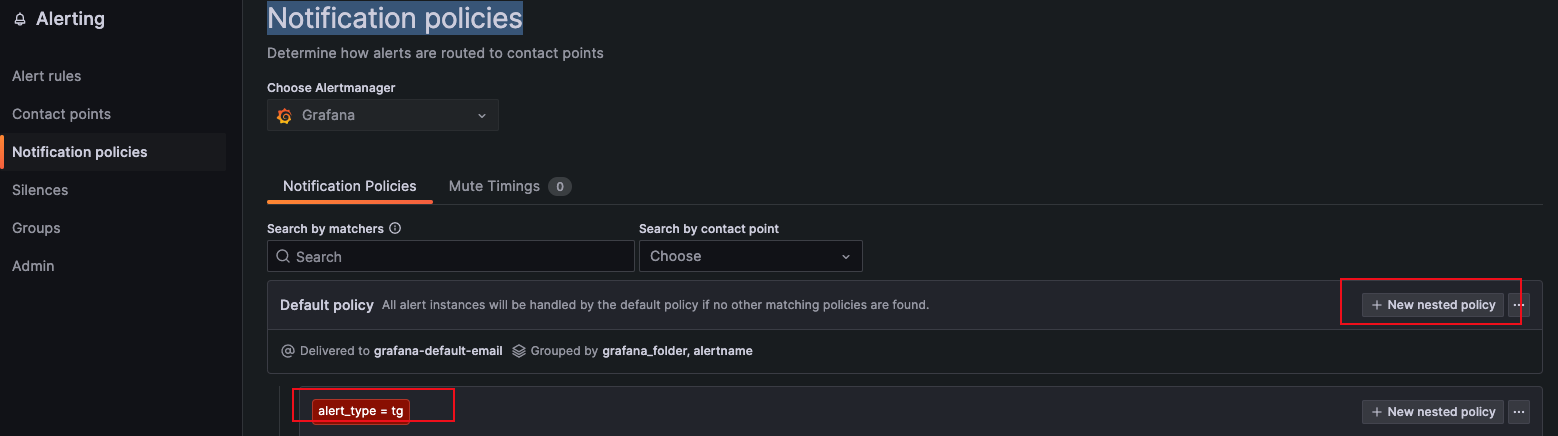

  1. Notification policies --> New nested policy --> create new notification policy Pasted image 20230821115717

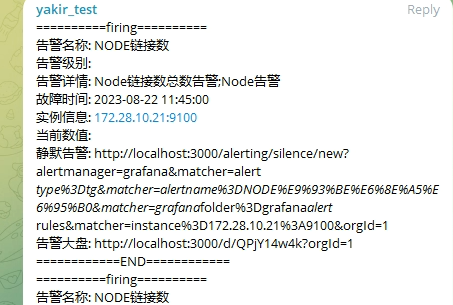

  2. Check alert notification Pasted image 20230823080802

Reference:

  1. Official Website
  2. Repository
  3. Grafana Alert
  4. Telegram Api SDK
